車床

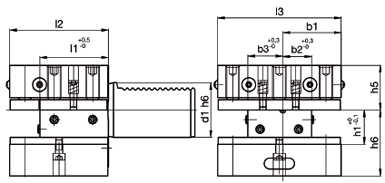

233700 帶多重夾緊的工件夾具 規格 D1
規格 d13h13l2 |
233700 |
d1 |
b1 |
b2 |
b3 |
h1 |
h5 |
h6 |
l1 |
l2 |
l3 |
D125316348 |
X |
25 |
33,0 |
19,0 |
19,0 |
16/12 |
25,0 |
30,0 |
34 |
48 |
66 |
D130320360 |
x |
30 |
35,0 |
17,0 |
23,0 |
20/16 |
28,0 |
38,0 |
42 |
60 |
76 |
D140325372 |
x |
40 |
42,5 |
21,0 |
25,5 |
25/20 |
32,5 |
48,0 |
50 |
72 |
90 |
D150332385 |
x |
50 |
50,0 |
26,0 |
30,5 |
32/25 |
35,0 |
60,0 |
60 |
85 |
105 |
D1603323110 |
X |
60 |
57,5 |
33,0 |
33,0 |
32/25 |
42,5 |
62,5 |
85 |
110 |
115 |
